قیمت : 285000000تومان
جهت ثبت سفارش تماس بگیرید
شیوادنت
گارانتی: شیوادنت - ضمانت سلامت فیزیکی کالا
آیا این کالا را برای فروش دارید؟ با سریع‌ترین و راحتترین روش ممکن کالاهای خود را در شیوادنت بفروشید

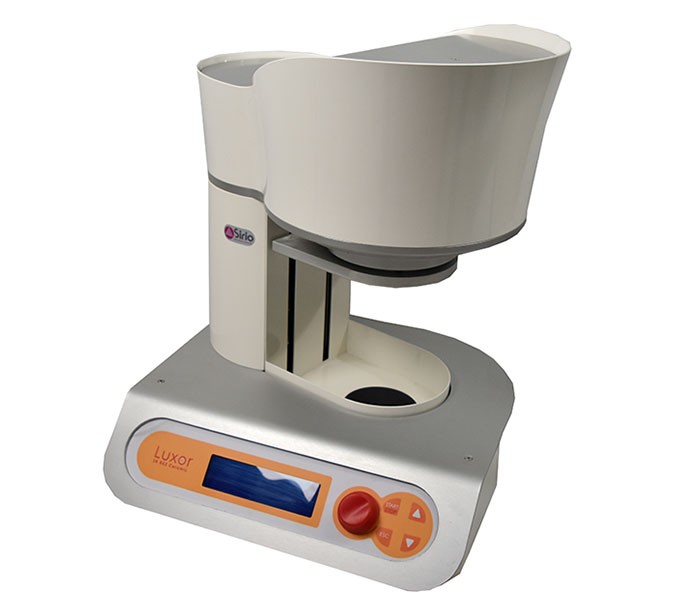

این کوره محصول کمپانی سیریو ایتالیا میباشد و برای تزریق انواع اینگات های موجود مورد استفاده قرار میگیرد.
.کوره از دقت بسیار بالایی در تزریق برخوردار است.
کوره قابلیت تنظیم 80 برنامه برای پخت پرسلن و 20 برنامه برای تزریق اینگات های مختلف را دارا میباشد.
در جدول زیر اطلاعت کلی کوره نمایش داده شده است
Technical Specifications: |
SR 862 |
| Power Supply | 230 V - 50/60 Hz |
| Power (no pump) | 1200 W |
| Fuses | 10 A |
| Dimensions | 40 (L) x 44 (P) x 50 (H) cm |
| Weight | 30 Kg |
| Available programmes | 100 |
| Functions (variables) per normal ceramic programme | 15 |
| Functions (variables) per injection ceramic programme | 14 |
| Selfcalibration programme | SI |
| F 1 | ta | Drying Temperature (or starting temperature) from 20° to 1200° Celsius. This temperature is obtained with a fixed slawe rate of 70°C/min |
| F 2 | t1 | Drying Time or Muffle closing time (minutes and seconds). Once the Drying Temperature TA is reached, the plate will lift itself and according to the set value of this variable will close the muffle |
| F 3 | t3 | Drying Time with closed muffle before the firing begins (in minutes and seconds). This time can be important to balance the inner muffle temperature after this has closed. If you set 0, after having closed the muffle the oven will start immediately the heating of the following phase F4 |
| F 4 | TC | Firing Temperature from 20° up to 1200°C |
| F 5 | VC | Slawe rate (in °C/min.) It varies from 2 to 200°C/min |
| F 6 | tc | Firing time (in minutes and seconds) |
| F 7 | Vacuum | (1=YES, 0=NO) |
| F 8 | tv-on | Starting temperatures of the vacuum pump. The vacuum can be set during the firing phase: therefore TV-ON must be higher or the same as TA |
| F 9 | tv-off | Off temperature of the vacuum pump. It can be lower or the same as TC |
| F 10 | tv-off | Lasting time of the vacuum to the TC. This value must be set only in this case TV-OFF=TC |
| F 11 | %V | Vacuum level expressed in % of the absolute vacuum |
| F 12 | TR | Guided cooling up to the pre-set temperature. The oven will cool slowly with a the cooling speed set in F13 before starting to open the muffle |
| F 13 | vr | Cooling speed in C°/min during the slow cooling |
| F 14 | t3 | Muffle opening time (in minutes and seconds). If you set the value 0 the muffle will automatically open |
| F15 | tf |
Final Temperature: it is the temperature the oven has been pre-set at the end of the cycle. This value will be set depending on the cooling temperature of the next cycle |
| F 1 | T1 | Start Temperature: it is the temperature from which a press-injection cycle starts. When you start the programme the oven raises its inner Temperature up to the T1. When such temperature is reached the oven will give a sound signal to indicate that it is ready for the cylinder. The user must open manually the oven, place the cylinder, close again the oven with the arrows and the cycle will continue |
| F 2 | t 2 | Injection temperature: it is the Temperature the oven will reach to obtain the softening of the “rough” and proceed with the injection |
| F 3 | Vs | Slawe rate expressed in C°/min: it indicates the increase of temperature the oven uses during the heating from T1 to T2 |
| F 4 | tm | Holding Time: it indicates the time the oven keeps the temperature T2 before the injection. This time varies from 10 to 20 minutes depending on the type of ceramic and the selected T2 temperature |
| Fp | pi | Injection Pressure. It represents the compressed air the technician wants to use during the injection. By increasing the pressure also the driving force on the material to be pressed will increase |
| Ft | ts | Pressure Ramp. It represents the time used to reach the chosen pressure. The pressure is not reached all at once but slowly according to the time chosen in this variable. |
| F 5 | tl | Injection time: it indicates the time, after the injection, that the oven will keep the pressure on the ceramic in order to obtain the completion of the pressure firing. This time is of about few minutes (normally about 5 minutes) |
| F 6 | tp | Post-injection time: it indicates the time the oven will maintain the temperature T2 after having released the pressure. This function is not used for many types of ceramics, if this is the case set the value F6 = 0 |
| F 7 | Vacuum | YES (It is impossible to set cycles without vacuum) |
| F 8 | tv | Starting vacuum Temperature: it indicates the temperature the pump goes On. The vacuum stops at the end of phase F4, that is when the pressure is released unless a different value from 0 is set for the variable F10 |
| F 9 | Vacuum Level | A vacuum level in percentage to the absolute level can be set. It is suggested to set the value at 95% |
| F 10 | Tpv | Post-injection vacuum time: if a different value from 0 has been set at the variable F6, the vacuum can be kept during this time. For most ceramics this value must be 0 |
| F 11 | Tr | Guided cooling up to: it indicates the temperature the oven will reach during the cooling with a closed muffle |
| F 12 | Vd | Drop speed: during the cooling set in variable F11 also set the cooling drop in °C/min |
| F 13 | ta | Muffle opening time: the muffle will slowly open in steps according to the time set in this function |
| F 14 | Tf | Final Temperature: it indicates the temperature the oven will remain once completed the cycle. This temperature is set according to the following cycle |
